All-Flo logoHeadquartered and produced in Mentor, Ohio, All-Flo Pump Co. is a leading manufacturer of fluid handling solutions for industrial markets. Since 1986, our Air Operated Double Diaphragm pumps have provided customers with simple solutions for challenging applications. All-Flo’s pumps are made from the widest range of metallic and plastic materials and are suitable for virtually any fluid transfer application. Our core markets are metal finishing, coatings, petrochemical, oil & gas, as well as a diverse range of other industrial markets.

Plastic Pumps

All-FLO A025 1/4" PLASTIC PUMP

A025 1/4" Plastic Pump

Diaphragm available Geolast®, PTFE, Santoprene®
Air Inlet Connection Size 1/4″ FNPT
Air Exhaust Connection Size 1/4″ FNPT
Liquid Connections FNPT (FBSPT)
Max Flow 5.7GPM
Max Pressure 120psi
Max Suction Lift (dry) 14ft – H2O
Max Suction Lift (wet) 28ft – H2O
Max Solids 1/16″

A025 Pump.pdf

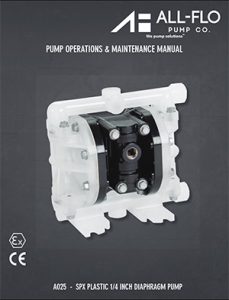

All-Flo A025 SPX Plastic Diaphragm Detroit Pump pdf
download download

All-FLO C038 3/8" PLASTIC PUMP

C038 3/8" Plastic Pump

Diaphragm available Geolast®, PTFE, Santoprene®
Liquid Connections FNPT
Air Inlet Connection Size
Air Exhaust Connection Size
Max Flow 9GPM
Max Pressure 120psi
Max Suction Lift (dry) 15ft – H2O
Max Suction Lift (wet) 26ft – H2O
Max Solids 1/16″

C038 Pump.pdf

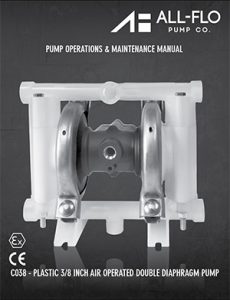

All-Flo C038 Plastic Air Operated Double Diaphragm Detroit Pump pdf
download download

All-Flo A050 Pump

A050 1/2" Plastic Pump

1/2″ Plastic Pump Geolast®, PTFE, Santoprene®
Diaphragm available FNPT
Liquid Connections 1/16″
Air Inlet Connection Size 1/4″ FNPT
Air Exhaust Connection Size 3/8″ FNPT
Max Flow 17GPM
Max Pressure 120psi
Max Suction Lift (dry) 15ft – H2O
Max Suction Lift (wet) 26ft – H2O
Max Solids 1/8″

A050 Pump.pdf

A050 PLASTIC AIR OPERATED DOUBLE DIAPHRAGM PUMP All-Flo Detroit Pump
download download

All-Flo A075 Pump.pdf

A075 3/4" plastic Pump

3/4″ plastic Pump
Diaphragm available Geolast®, PTFE, Santoprene®, Viton®/FKM
Liquid Connections FNPT, FBSPT
Air Inlet Connection Size 1/4″ FNPT
Air Exhaust Connection Size 3/8″ FNPT
Max Flow 17GPM
Max Pressure 120psi
Max Suction Lift (dry) 15ft – H2O
Max Suction Lift (wet) 26ft – H2O
Max Solids 1/8″

A075 Pump.pdf

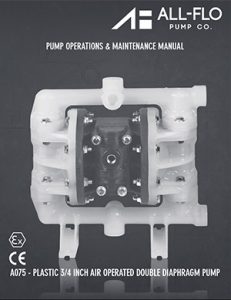

https://detroitpump.com/wp-content/uploads/2018/08/All-Flo_A075_Series_Plastic_0.75in_Air_Operated_Double_Diaphragm_Manual_Detroit_Pump.pdf
download download

All-Flo A100 1" PLASTIC PUMP

A100 1" Plastic Pump

Diaphragm available Geolast®, PTFE with Santoprene® backup, Santoprene®,  Viton®/FKM
Air Inlet Connection Size 1/4″ FNPT
Air Exhaust Connection Size 3/8″ FNPT
Liquid Connections FNPT, FBSPT, ANSI/DIN Flange
Max Flow 41PGM
Max Pressure 120psi
Max Suction Lift (dry) 15ft – H2O
Max Suction Lift (wet) 26ft – H2O
Max Solids 1/4″

A100 Pump.pdf

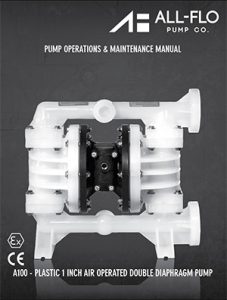

A100 PLASTIC 1 INCH AIR OPERATED DOUBLE DIAPHRAGM All-Flo Detroit Pump
download download

All Flo C150 1-1/2" PLASTIC PUMP

C150 1-1/2" Plastic Pump

1 1/2″ Plastic Pump
Diaphragm available Geolast®, PTFE with Santoprene® backup, Santoprene®,  Viton®/FKM
Liquid Connections ANSI/DIN Flange
Air Inlet Connection Size 3/4″ FNPT
Air Exhaust Connection Size 3/4″ FNPT
Max Flow 130GPM
Max Pressure 120psi
Max Suction Lift (dry) 13ft – H2O
Max Suction Lift (wet) 26ft – H2O
Max Solids 1/4″

C150 Pump.pdf

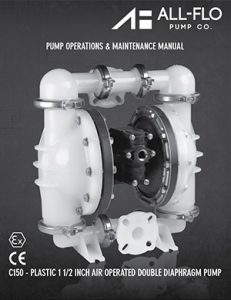

C150 Pump PLASTIC AIR OPERATED DOUBLE DIAPHRAGM All-Flo Detroit Pump
download download

All-Flo A200 2" PLASTIC PUMP

A200 2" Plastic Pump

2″ Plastic Pump
Diaphragm available Geolast®, PTFE with Santoprene® backup, Santoprene®,  Viton®/FKM
Liquid Connections ANSI/DIN Flange
Air Inlet Connection Size 3/4″ FNPT
Air Exhaust Connection Size 3/4″ FNPT
Max Flow 160GPM
Max Pressure 1/4″
Max Suction Lift (dry) 17ft – H2O
Max Suction Lift (wet) 29ft – H2O
Max Solids 1/4″

A200 Pump.pdf

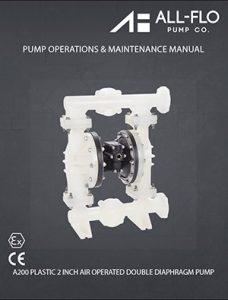

A200 PLASTIC 2 INCH AIR OPERATED DOUBLE DIAPHRAGM All-Flo Detroit Pump
download download

metal Pumps

All-Flo A050 1/2" Metal Pump

A050 1/2" Metal Pump

1″ Metal Pump
Liquid Port Size 1″
Liquid Connections FNPT (FBSPT)
Air Inlet Connection Size 1/4″ FNPT
Air Exhaust Connection Size 3/4″ FNPT
Max Flow 48GPM
Max Pressure 120psi
Max Suction Lift (dry) 17ft – H2O
Max Suction Lift (wet) 30ft – H2O
Max Solids 1/4″

A050 Metal Pump.pdf

A050 Metal AIR OPERATED DOUBLE DIAPHRAGM All-Flo Detroit Pump
download download

All-Flo A100 1" METAL PUMP

A100 1" Metal Pump

1″ Metal Pump
Liquid Port Size 1″
Liquid Connections FNPT (FBSPT)
Air Inlet Connection Size 1/4″ FNPT
Air Exhaust Connection Size 3/4″ FNPT
Max Flow 48GPM
Max Pressure 120psi
Max Suction Lift (dry) 17ft – H2O
Max Suction Lift (wet) 30ft – H2O
Max Solids 1/4″

A100 Metal Pump.pdf

A100 Metal 1 INCH AIR OPERATED DOUBLE DIAPHRAGM All-Flo Detroit Pump
download download

All-Flo A100 1" METAL PUMP

A150 1-1/2" Metal Pump

1 1/2″ Metal Pump
Liquid Port Size 1 1/2″
Liquid Connections FNPT, FBSPT, ANSI/DIN, Flanged
Air Inlet Connection Size 3/4″ FNPT
Air Exhaust Connection Size 1 1/4″ FNPT
Max Flow 115GPM
Max Pressure 120psi
Max Suction Lift (dry) 22ft – H2O
Max Suction Lift (wet) 31ft – H2O
Max Solids 1/4″

A150 Metal Pump.pdf

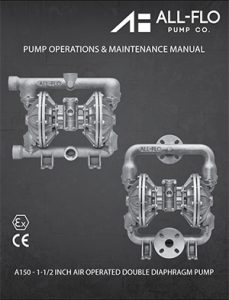

A150 Metal 1-1/2 INCH AIR OPERATED DOUBLE DIAPHRAGM All-FLo Detroit Pump
download download

All-Flo A200 2" METAL PUMP

A200 2" Metal Pump

2″ Metal Pump
Liquid Port Size 2″
Liquid Connections FNPT, FBSPT, ANSI/DIN, Flanged
Air Inlet Connection Size 3/4″ FNPT
Air Exhaust Connection Size 1 1/8″ FNPT
Max Flow 15GPM
Max Pressure 120psi
Max Suction Lift (dry) 24.4ft – H2O
Max Suction Lift (wet) 31.7ft – H2O
Max Solids 1/4″

A200 Metal Pump.pdf

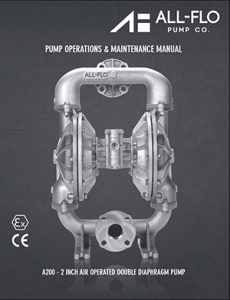

A200 Metal Pump INCH AIR OPERATED DOUBLE DIAPHRAGM PUMP All-FLo Detroit Pump
download download

All-Flo A300 3" METAL PUMP

A300 3" Metal Pump

3″ Metal Pump Double Diaphragm
Liquid Port Size 1″
Liquid Connections FNPT, FBSPT, ANSI/DIN, Flanged
Air Inlet Connection Size 3/4″ FNPT
Air Exhaust Connection Size 3/4″ FNPT
Max Flow 235GPM
Max Pressure 120psi
Max Suction Lift (dry) 20ft – H2O
Max Suction Lift (wet) 31ft – H2O
Max Solids 1/4″

A300 Metal Pump.pdf

A300 Metal Pump METALLIC 3 INCH AIR OPERATED DOUBLE DIAPHRAGM PUMP All-Flo Detroit Pump
download download

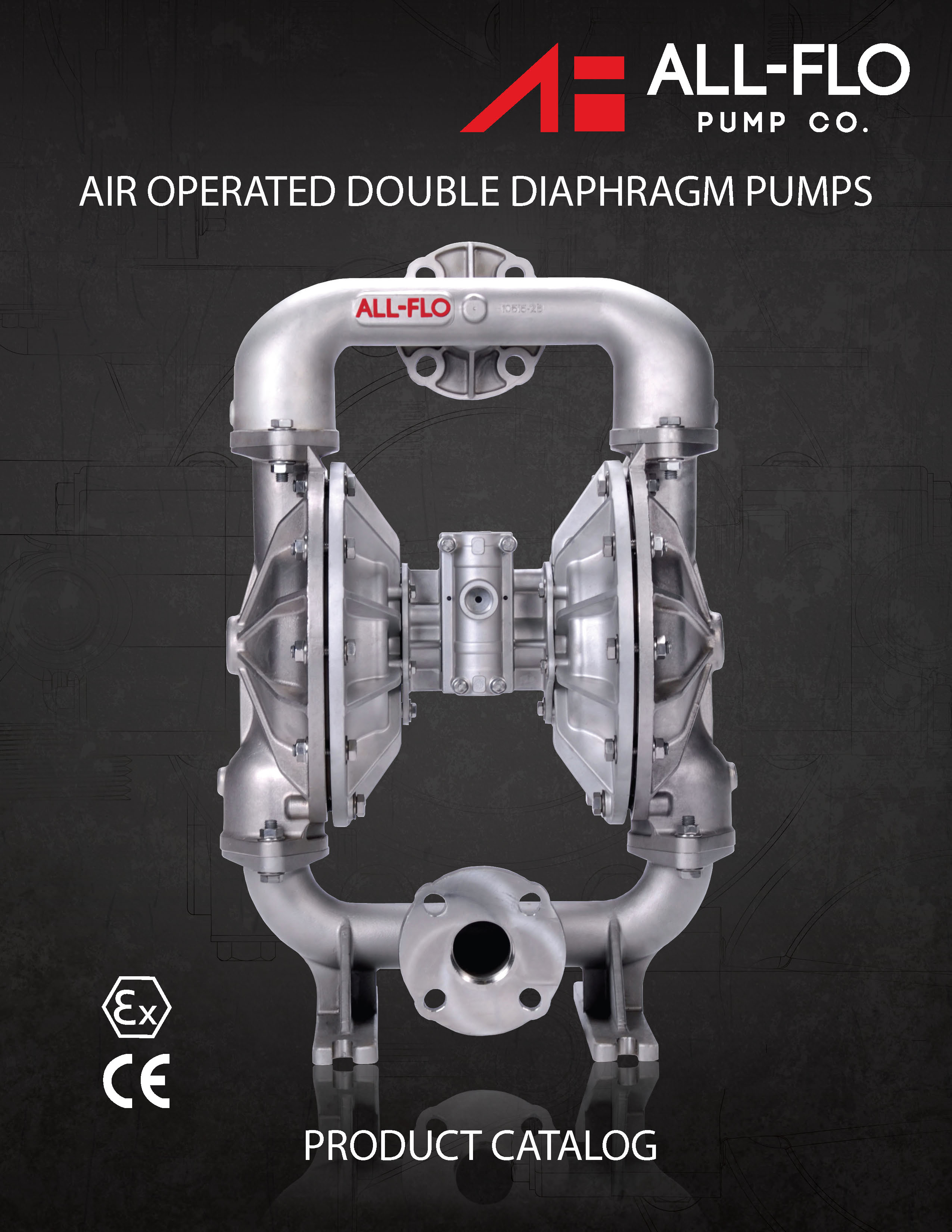

All-Flo Brochure

Detroit Pump Brochure and Case Study Page

You can download Detroit Pump’s Main Manufacturers Brochures and Detroit Pump’s Linecard, Credit Application, Tax Exempt Form, and Case Studies Here
